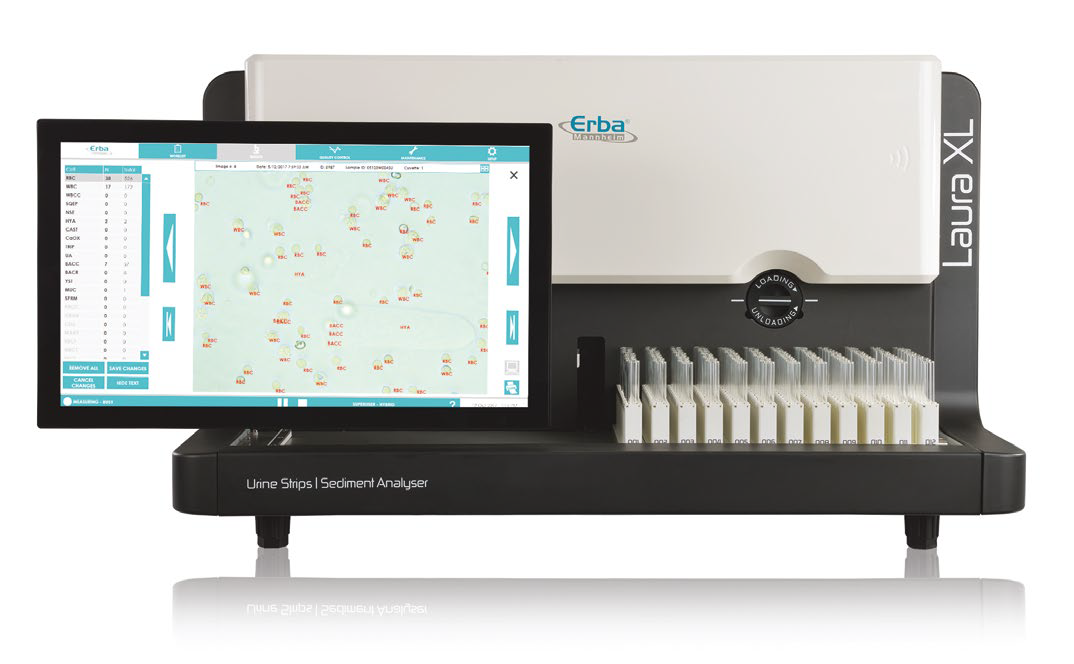

LAURA XL

Workflow optimization through full automation
  • Combining urine strip reading and digital microscopy, the Laura XL delivers fully automated processing of urine samples.
  • From homogenisation and dispensing onto strips, to sedimentation and result evaluation, it’s all done automatically, accurately and quickly.
  • High resolution digital images are generated reducing the need for additional evaluation by
    visual microscopy.
Download Brochure
Read more

Powerful automation

  • Fully automated processing
  • 3 operating modes
  • 10 or 11 chemistry parameters, plus color and clarity
  • 18 automated sediment categories
  • 16 additional manual sediment categories

Easy to use

  • Intuitive user interface
  • LIS connectivity
  • Automatic programmed maintance
  • Active humidity protection

Efficient and time saving

  • Up to 125 - 160 tests per hour
  • Reusable cuvettes
  • Full analytics from 0.9ml urine

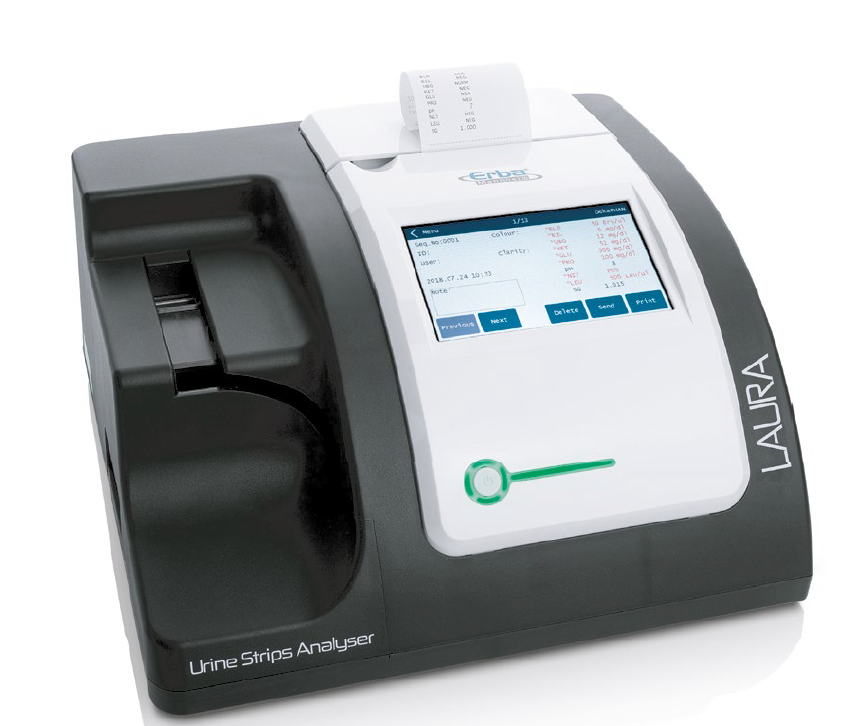

LAURA

Semi automated Urine strip analyser

Complete Solution

  • The LAURA analyser with PHAN diagnostic strips and URINORM urine controls provide a complete solution to optimize laboratory workflow.
  • Automatic incubation, measurement and evaluation of urine strip results, as well as comprehensive data management, brings customers more convenience while reducing the incidence of potential human errors
Download Brochure
Read more

Dip and measure

  • The overall operation and software design is very user friendly.

  • Intuitive icons navigate the user through the menu and help quick adaptation to the new system.

Proven technology

  • PHAN strips technology uses an enzymatic degradation of ascorbic acid which act as strong interfering agent.

Comprehensive data management

  • A unique ID number can be entered for each sample either manually or by means of external keyboard or barcode reader.

Advanced QC management

  • QC Timing reminds QC measurement
  • QC Clock prevents sample measurement if QC fails
  • Target QC values are set in the SW by default
  • Flagging of abnormal results and recommendation for sediment analysis

Strip type flexibility

  • Strip type is recognized automatically by the reader, no manual setting required.

  SG LEU NIT pH PRO GLU KET U BG BIL BLD MA CRE CP
DEKAPHAN LAURA • • • • • • • • • •     •
HEPTAPHAN LAURA       • • • • • • •     •
PENTAPHAN LAURA       • • • •     •     •
TETRAPHAN LAURA SG •     • • •             •
DIAPHAN LAURA           • •           •
MICROALPUBHAN LAURA*                     • • •
* Albumin/Creatinine ratio is calculated automatically for each measured urine sample.

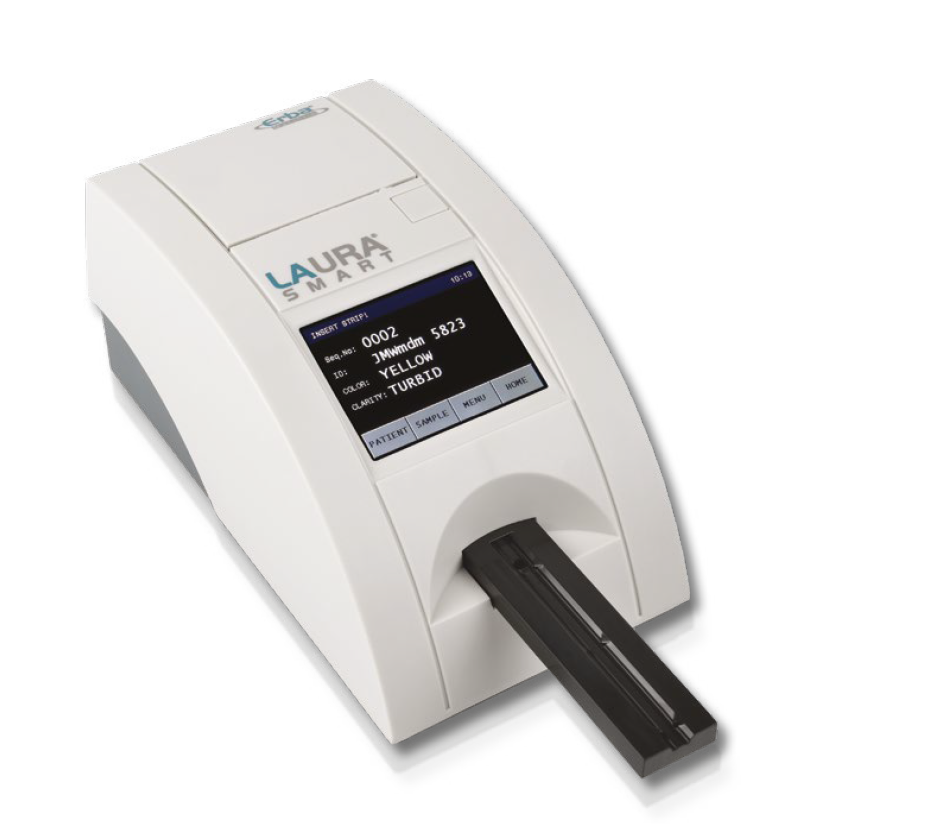

LAURA SMART

Objective and compact solution for urine analysis

Urine strip reader LAURA® Smart is an efficient and compact solution for routine chemical urinalysis.
  • Be it a clinical laboratory or the ambulance of a GP, a diabetologist, a nephrologist or other specialist, the objective photometric evaluation and semi-automated technology provided by LAURA® Smart will ease the processing of samples and contribute to correct diagnosis of the patients.
Download Brochure
Read more

Smart Timing® mode

Smart Timing® is a special working mode of LAURA® Smart that provides an elevated throughput of 240 samples per hour. While in Standard mode 1 strip incubation is counted at a time, in Smart Timing® mode 4 incubation periods are counted in parallel enabling a four times higher throughput

Sample identification made easy

LAURA® Smart offers two different sample identification modes:

  • Sequential: a sequence number is automatically assigned to each sample

  • Sample ID: a unique ID number can be entered for each sample either manually or by means of external keyboard or barcode reader

Control, calibration and maintenance

LAURA® Smart performs a simple and fast automatic self-check and
calibration at each start-up.

Strip type flexibility

To cover the full range of routine chemical urinalysis, LAURA® Smart is compatible with
different types of urine test strips. The strip type being used is automatically identified by
the reader, no manual setting is needed.


  SG LEU NIT pH PRO GLU KET U BG BIL BLD MA CRE CP
DEKAPHAN LAURA • • • • • • • • • •     •
HEPTAPHAN LAURA       • • • • • • •     •
PENTAPHAN LAURA       • • • •     •     •
TETRAPHAN LAURA SG •     • • •             •
DIAPHAN LAURA           • •           •
MICROALPUBHAN LAURA*                     • • •
* Albumin/Creatinine ratio is calculated automatically for each measured urine sample.

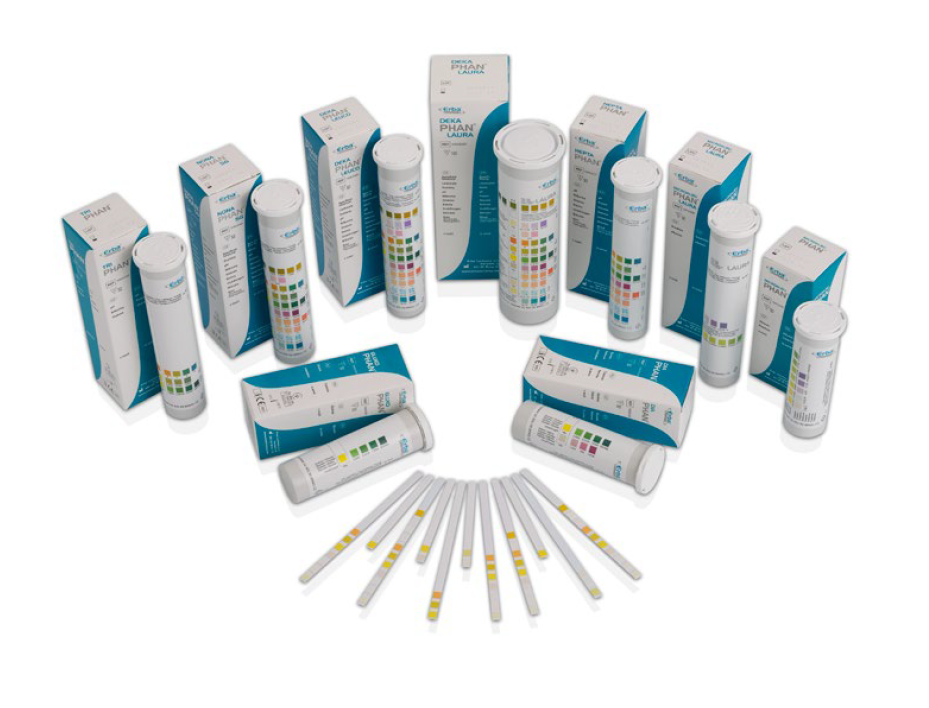

VISUAL PHAN STRIPS

The PHAN diagnostic strips provide an efficient screening in connection with standard examinations of patients and monitoring of their subsequent treatment.

The principal benefits of the products are simplicity of the process of testing, speed of the testing procedure (results obtained within 1-2 minutes) as well as a high level of diagnostic specificity and sensitivity. The strips are to be used mainly in clinical chemistry laboratories and surgeries of specialized physicians and general practitioners.

Download Brochure
Read more
Available Visual Strips

Order codes:


Cat No Product No Product Name Quantity
URPH0001 10003311 AlbuPHAN 50 strips
URPH0002 10003351 GlukoPHAN 50 strips
URPH0003 10003312 HemoPHAN 50 strips
URPH0004 10003313 KetoPHAN 50 strips
URPH0005 10003316 DiaPHAN 50 strips
URPH0006 10003315 IktoPHAN 50 strips
URPH0007 10003320 TriPHAN 50 strips
URPH0008 10010228 TriPHAN 100 strips
URPH0009 10003331 TetraPHAN Dia 50 strips
URPH0010 10003322 PentaPHAN 50 strips
URPH0011 10003318 HexaPHAN 50 strips
URPH0012 10007382 HexaPHAN 100 strips
URPH0013 10003317 HeptaPHAN 50 strips
URPH0014 10007383 HeptaPHAN 100 strips
URPH0015 10003349 NonaPHAN SG 100 strips
URPH0016 10003352 NefroPHAN Leuco 50 strips
URPH0017 10003350 DekaPHAN Leuco 50 strips
URPH0018 10007386 DekaPHAN Leuco 100 strips
URPH0019 10003354 UndekaPHAN 50 strips
URPH0020 10010244 MicroalbuPHAN 50 strips



If you are interested in knowing more about our Urinalysis product range. Please submit the below form and an Erba Mannheim associate will be in contact soon.

*Required field
